Idler gears is a gear wheel placed between two other gears to transmit motion from one to the other. It does not alter the speed of the output, but it does alter the direction it turns. It is used to ensure that the rotation of two gears is the same. An idler gear is placed …

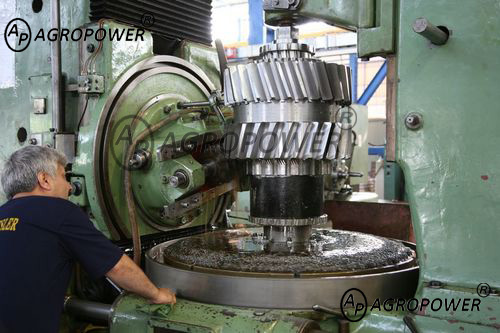

Herringbone gear Herringbone gears are said to be a type of Double helical Gears in fact they are in essence a two side-by-side, opposite-hand held helical gears. As the tooth angles of the herringbone gear are reversed on the opposite side, this results into counterbalance of the thrusts produced by the left hand or right …
Ground gear was first made with the advent of trawling. Now ground gears are used in wide range of applications including automobile gears, tractor gears, industrial gears. Until 1985, the predominant type of ground gear mounted on bottom trawls consisted of rolling bobbins, threaded on a chain that ran through holes in their centers. In …
Girth Gears: Girth gears are considered to be one of the most important component in the entire gear drive assembly and used in various industrial applications. The highlighted feature of girth gears is that they are made in multiple segments. These segments are of two, four or eight equal sizes. They are also known as …
The sun and planetary gear arrangement is also known as Epicyclic gear unit. We will discuss sun and planet gear arrangement and its working. Slide 1 of 1 shaft is Sun and Planetary Gear or Epicyclic Gear? The sun and planetary gear arrangement, sometimes also called as Epicyclic gear train, is a gear train, where …
Epicyclic Gear Train or Planetary gearbox manufacturer Gear Train: A gear train is a set or system of gears arranged to transfer rotational torque from one part of a mechanical system to another. Epicyclic Gear Trains : It is the system of epicyclic gears in which at least one wheel axis itself revolves around another …
Variable gear train is a compound gear train, which has a variable gear reduction ratio. These types of gear trains are used widely in automobile manual transmission systems. The variable gear train is often coupled with a clutch. The clutch is activated while shifting the gear from one ratio to another one. The reason why …
Gear Train: A gear train is a set or system of gears arranged to transfer rotational torque from one part of a mechanical system to another. Reverted Gear Train : This is also a kind of compound gear train. Here, the input shaft and output shaft are collinear to each other.
Compound Gear Trains For large velocities, compound arrangement is preferred. Two keys are keyed to a single shaft. A double reduction train can be arranged to have its input and output shafts in a line, by choosing equal center distance for gears and pinions. Gear Trains: A gear train is a set or system …
Simple Gear Trains The most common of the gear train is the gear pair connecting parallel shafts. The teeth of this type can be spur, helical or herringbone. The angular velocity is simply the reverse of the tooth ratio. The main limitation of a simple gear train is that the maximum speed change ratio is …
